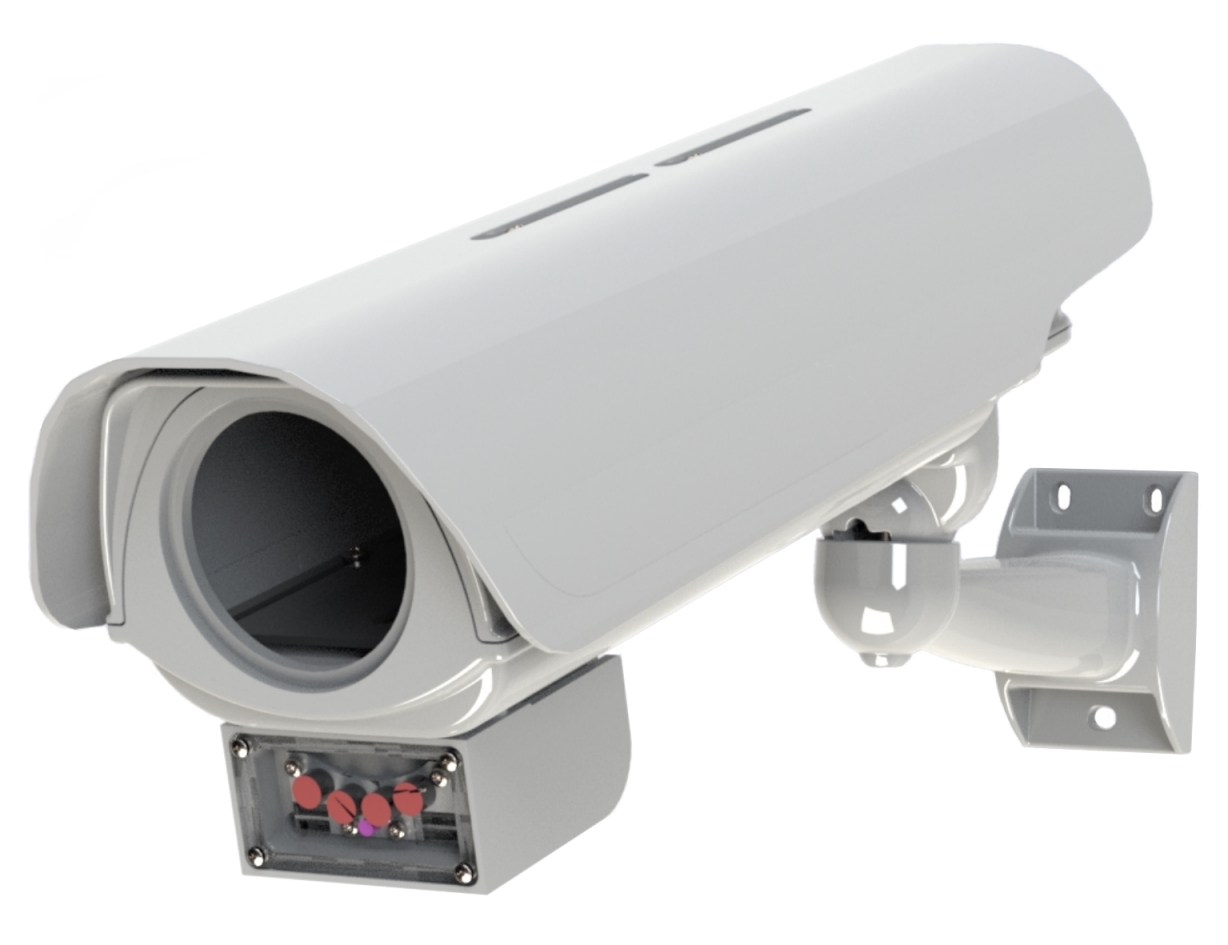

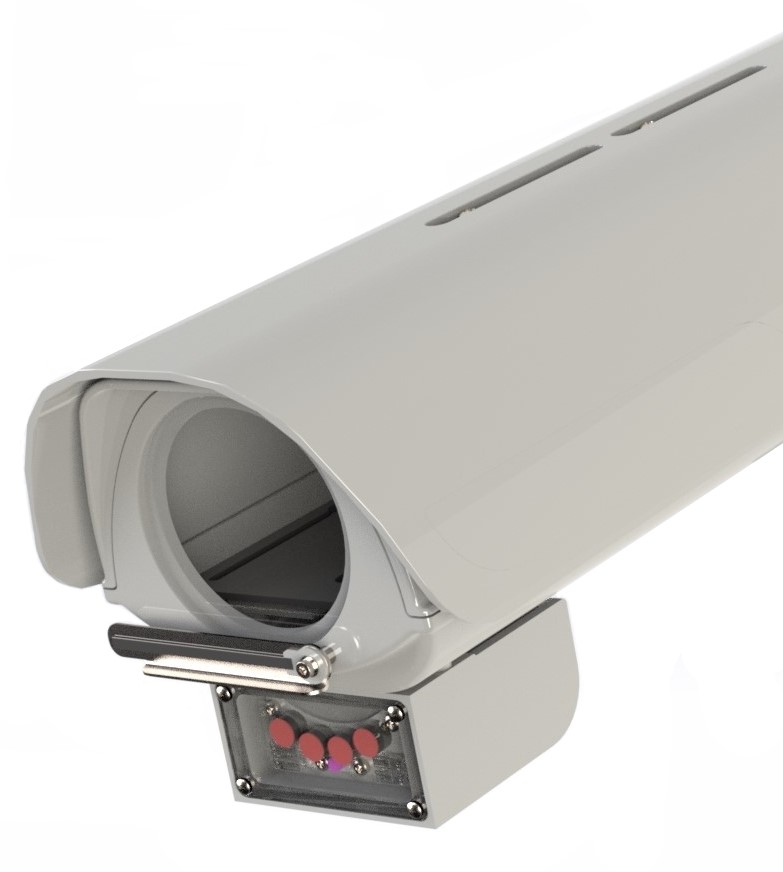

The CRONO CLP870 housing is particularly suitable for DAY&NIGHT cameras with mechanical IR cut filter.
This all-in-one solution allows to mount the camera outdoor without needing any additional device. The built-in control circuit permits the DAY/NIGHT switching by means of the twilight sensor in the infrared LED array. The optimum performance of the IR
LEDs, together with the wide range of adjustments of both the IR switch and the control circuit, allows to reduce installation costs and times.
The die-cast aluminum construction provides high impact resistance and good heat dissipation toward the outside, while the side opening notably simplifies the processes of mounting and maintenance. Supplied with wall bracket cable managed.
There is a wide range of accessories available: double heating, anti-tamper switch, built-in blower, forced-air cooling set for high temperatures, closing with safety lock on rear side.
Suitable for every installations of cameras, megapixel cameras with various lenses.
Technical data:
- Aluminium body.
- UV-resistant technopolymer sunshield with wide range of adjustments.
- RAL 7035 polyester powder coating (light grey).
- Stainless steel bolts and screws.
- Side opening housing with captive screws.
- Thermostatically controlled heater.
- Wide range of accessories.
- Supplied with instruction manual.
- Voltage input: 230-110Vac, 24Vac-dc.
- IR wavelength: 850nm.
- TR1 trimmer for the twilight sensor threshold adjustment.
- TR2 trimmer for IR intensity adjustment.
- Maximum distance: 180m.
- Usable internal space: 90x70mm (WxH).
- Usable length: see datasheet
- Glass window: Ø 75mm.
- Weatherproof rating: IP66/67.
- Vandal resistant rating IK10.
- Weatherproof rating with forced-air cooling set: IP44.
- Indoor/outdoor installations.
- Operating temperature with heater: from -20°C to +60°C.
- Weight: 2,9 Kg (KIT version).
